“Low-” versus “high”-frequency oscillation and right ventricular function in ARDS. A randomized crossover study

Journal of Intensive Care20186:58

https://doi.org/10.1186/s40560-018-0327-3

  • Received: 4 July 2018
  • Accepted: 22 August 2018
  • Published:

Abstract

Background

Recent, large trials of high-frequency oscillation (HFO) versus conventional ventilation (CV) in acute respiratory distress syndrome (ARDS) reported negative results. This could be explained by an HFO-induced right ventricular (RV) dysfunction/failure due to high intrathoracic pressures and hypercapnia. We hypothesized that HFO strategies aimed at averting/attenuating hypercapnia, such as “low-frequency” (i.e., 4 Hz) HFO and 4-Hz HFO with tracheal-gas insufflation (HFO-TGI), may result in an improved RV function relative to “high-frequency” (i.e., 7 Hz) HFO (which may promote hypercapnia) and similar RV function relative to lung protective CV.

Methods

We studied 17 patients with moderate-to-severe ARDS [PaO2-to-inspiratory O2 fraction ratio (PaO2/FiO2) < 150]. RV function was assessed by transesophageal echocardiography (TEE). Patients received 60 min of CV for TEE-guided, positive end-expiratory pressure (PEEP) “optimization” and subsequent stabilization; 60 min of 4-Hz HFO for “study mean airway pressure (mPaw)” titration to peripheral oxygen saturation ≥ 95%, without worsening RV function as assessed by TEE; 60 min of each tested HFO strategy in random order; and another 60 min of CV using the pre-HFO, TEE-guided PEEP setting. Study measurements (i.e., gas exchange, hemodynamics, and TEE data) were obtained over the last 10 min of pre-HFO CV, of each one of the three tested HFO strategies, and of post-HFO CV.

Results

The mean “study HFO mPaw” was 8–10 cmH2O higher relative to pre-HFO CV. Seven-Hz HFO versus 4-Hz HFO and 4-Hz HFO-TGI resulted in higher mean ± SD right-to-left ventricular end-diastolic area ratio (RVEDA/LVEDA) (0.64 ± 0.15 versus 0.56 ± 0.14 and 0.52 ± 0.10, respectively, both p < 0.05). Higher diastolic/systolic eccentricity indexes (1.33 ± 0.19/1.42 ± 0.17 versus 1.21 ± 0.10/1.26 ± 0.10 and 1.17 ± 0.11/1.17 ± 0.13, respectively, all p < 0.05). Seven-Hz HFO resulted in 18–28% higher PaCO2 relative to all other ventilatory strategies (all p < 0.05). Four-Hz HFO-TGI versus pre-HFO CV resulted in 15% lower RVEDA/LVEDA, and 7%/10% lower diastolic/systolic eccentricity indexes (all p < 0.05). Mean PaO2/FiO2 improved by 77–80% during HFO strategies versus CV (all p < 0.05). Mean cardiac index varied by ≤ 10% among strategies. Percent changes in PaCO2 among strategies were predictive of concurrent percent changes in measures of RV function (R2 = 0.21–0.43).

Conclusions

In moderate-to-severe ARDS, “short-term” 4-Hz HFO strategies resulted in better RV function versus 7-Hz HFO, partly attributable to improved PaCO2 control, and similar or improved RV function versus CV.

Trial registration

This study was registered 40 days prior to the enrollment of the first patient at ClinicalTrials.gov, ID no. NCT02027129, Principal Investigator Spyros D. Mentzelopoulos, date of registration January 3, 2014.

Keywords

  • High-frequency ventilation
  • Respiratory distress syndrome
  • Adult
  • Heart ventricles
  • Hypercapnia
  • Echocardiography
  • Transesophageal

Background

High-frequency oscillation (HFO) is a ventilatory strategy employing tidal volumes (Vts) of < 4 mL/kg predicted body weight administered at frequencies of 3–15 Hz [1]. Despite previous encouraging findings [26], two recently published, multicenter, randomized clinical trials (RCTs) that compared HFO with conventional ventilation (CV) in early acute respiratory distress syndrome (ARDS) reported either neutral results [7] or an HFO-induced harm [8]. These RCTs employed “high-frequency” (i.e., mean, day 1 and day 2 frequency settings of 5.5–7.8 and 6.6–7.5 Hz, respectively) HFO without tracheal tube cuff leak and CV with moderate or low-Vt and moderate or high-positive end-expiratory pressure (PEEP) [7, 8]. These results might be partly attributable to right ventricular (RV) overload, dysfunction, and failure caused by concurrent high intrathoracic pressures and hypercapnia, and consequent hemodynamic instability and increased need for inotropic/vasopressor support [912]. Indeed, mortality rate is increased in ARDS patients with acute cor pulmonale [13].

Notably, prior two-center data on moderate-to-severe ARDS suggested a survival benefit from the intermittent use of “low-frequency” (i.e., approximately 4 Hz) HFO with tracheal tube cuff leak and tracheal gas insufflation (TGI) [14]. “Low”-HFO frequency, cuff leak, and TGI augment CO2 elimination [14, 15], with potential benefit on RV function.

The development of lung protective CV aimed at minimizing lung injury and organ dysfunction [16] was based on decades of laboratory and clinical research. This research subsequently paved the way for the conception and conduct of the conclusive ARDSnet trial [17]. In sharp contrast, recently proposed and tested HFO strategies [7, 8] were based just on pilot clinical data and expert consensus [8]; furthermore, these HFO strategies were focused at preventing lung injury, without concurrently protecting the RV [712, 18]. Therefore, discrepant prior data [6, 14] and recent RCT results [7, 8] might partly reflect differences in protocol-employed HFO ventilator settings and their impact on RV function and patient outcomes.

In the present physiological study, we used transesophageal echocardiography (TEE) and tested the hypothesis that “short-term” “low-frequency” HFO with cuff leak and with or without TGI,—i.e., HFO strategies aimed at preventing hypercapnia [14, 15]—might result in (1) improved RV function as compared with a “high-frequency” HFO strategy without cuff leak or TGI, which may promote hypercapnia [7, 8], and (2) similar RV function relative to lung protective CV. Avoiding excessive hypercapnia might prevent or attenuate RV dysfunction/failure during the application of high-HFO mean airway pressure (mPaw) aimed at augmenting lung recruitment [913].

Methods

Additional details, including pre-study patient preparation, are presented in Additional file 1.

Research ethics committee approval and informed consent

This study was approved by the Evaggelismos Hospital Scientific Committee (approval no. 271-30-10-2013), and written informed consent was obtained from the next-of-kin of all participating patients. The study was registered 40 days prior to the enrollment of the first patient at ClinicalTrials.gov (NCT02027129, Principal Investigator Spyros D. Mentzelopoulos, date of registration January 3, 2014).

Patients

We studied patients with early (onset within preceding 72 h) ARDS and a PaO2-to-inspiratory O2 fraction (FiO2) ratio of < 150. Patients were for ≥ 24 h on low-Vt CV [14, 17] with FiO2 set within 0.50–0.90 and PEEP set within 10–17 cmH2O. Eleven patients had moderate ARDS and 6 patients had severe ARDS according to the Berlin definition [19]. Patients were nursed in the 27-bed Intensive Care Unit of Evaggelismos Hospital, Athens, Greece. Study eligibility criteria are presented in Additional file 1: Table S1. The departmental, lung protective CV protocol is presented in Additional file 1: Table S2. Figure 1 displays a study protocol schema. Continuous patient monitoring comprised electrocardiographic lead II, peripheral oxygen saturation (SpO2), intraarterial pressure, and cardiac index by pulse-induced contour cardiac output (PiCCO) Plus (PICCO Plus, Pulsion Medical Systems) [14, 15]. Patients were anesthetized and paralyzed throughout the study [15].
Fig. 1
Fig. 1

Schematic representation of the study protocol. CV1 first period of lung protective conventional ventilation, PEEP positive end-expiratory pressure, TEE transesophageal echocardiography, SM safety measurement, RVEDA right ventricular end-diastolic area, LVEDA left ventricular end-diastolic area, FiO2 inspiratory oxygen fraction, RM recruitment maneuver, mPaw mean airway pressure, SpO2 peripheral oxygen saturation, HFO high-frequency oscillation, TGI tracheal gas insufflation, CV2 second (study protocol concluding) period of lung-protective conventional ventilation. *Continuous positive airway pressure of 45 cmH2O for 40 s; the HFO breathing circuit was pressurized with the oscillator piston off. During the first study TEE SM (measurement duration, < 5 min), an RVEDA/LVDEA ratio of > 0.8 triggered a PEEP decrease by 2–3 cmH2O. Performed within 15–20 min after a protocol-mandated decrease in PEEP (see above); this (second) TEE SM was not performed whenever RVEDA/LVEDA did not exceed 0.8 at the first TEE SM. §Includes saved midesophageal four-chamber views and, transgastric, two-chamber, short-axis views, and hemodynamic and gas exchange data during all ventilator strategy testing periods; quasistatic respiratory compliance data were also obtained during CV1 and CV2; each time, the study protocol measurements were to be completed within 10 min. During HFO-TGI, the mPaw was set at 2–3 cmH2O lower than the “study HFO mPaw” to counterbalance an estimated, TGI-associated increase of similar magnitude in HFO tracheal pressure; see also text, reference [15] and Additional file 1

Study protocol

Pre-HFO CV—TEE guided setting of PEEP—part 1 of optimization phase (Fig. 1)

During an initial, 60-min CV period, PEEP was to be optimized according to consecutive assessments of RV function with TEE; these TEE assessments were termed as patient safety measurements (SMs). A 7-MHz transducer connected to a Vivid 7 Expert machine (General Electric) was passed into the esophagus; the TEE probe was to be left within the esophagus throughout the study. The first (baseline) TEE-SM comprised a midesophageal, four-chamber view enabling determination of RV end-diastolic area (RVEDA) and left ventricular end-diastolic area (LVEDA). An RVEDA/LVEDA of > 0.8 triggered at least one downward PEEP titration of 2–3 cmH2O, with a consequent, equal decrease in CV-mPaw. The pre-HFO CV-mPaw was used for the subsequent setting of HFO mPaw (see below). Consequently, the pre-HFO PEEP reduction(s) were aimed at both immediately improving RV function and minimizing the risk of subsequent RVEDA/LVEDA > 0.90 (i.e., RV failure [9]) due to high-HFO-associated intrathoracic pressures. Any adjustment in pre-HFO CV settings was to be followed by ≥ 15 min of “stabilization” (i.e., CV with settings maintained unchanged). The TEE-SM was to be repeated within 15–20 min after a PEEP decrease (Fig. 1). Failure to achieve RVEDA/LVEDA < 0.9 after two consecutive PEEP reductions was to result in protocol termination. Study physiological measurements, i.e., gas exchange, respiratory mechanics (by rapid end-inspiratory/end-expiratory airway occlusion and determination of the respective plateau pressures [14]), and hemodynamics [14, 15], and TEE midesophageal, four-chamber, and transgastric, two-chamber, short-axis views (to determine the eccentricity index [9]) were obtained within 50–60 min after study initiation (Figs. 1 and 2).
Fig. 2

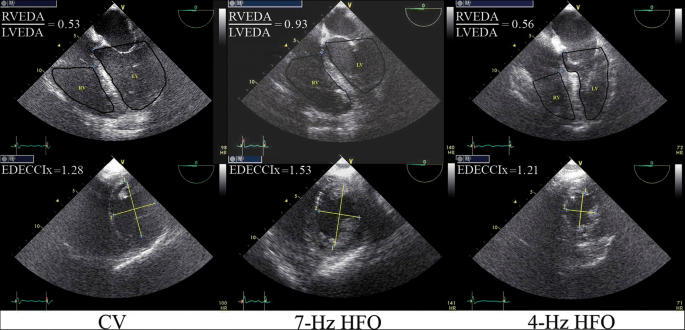

Fig. 2

Examples of transesophageal echocardiographic (TEE) determination of two primary study outcome variables. Upper panel: determination of the right-to-left ventricular end-diastolic area ratio (RVEDA/LVEDA). Lower panel: determination of the end-diastolic eccentricity index (EDECCIx). The left vertical pair of images was obtained from study participant no. 12 during conventional ventilation (CV), the middle pair of images was obtained from participant no. 7 during 7-Hz high-frequency oscillation (HFO), and the right pair of images was obtained from participant no. 13 during 4-Hz HFO. In the lower panel (short-axis, transgastric views), “2” corresponds to the diameter of the left ventricle (LV) that was perpendicular to and bisecting the interventricular septum, whereas “1” corresponds to the diameter that was perpendicular to “2.” TEE measurements were repeated and averaged over 2–4 consecutive cardiac cycles (see also Additional file 1); EDECCIx was calculated as diameter “1”/diameter “2.” Description of figure modifications performed with Photoshop CC (Adobe Systems): upper panel, enhancement of the periphery of the right ventricle (RV) and LV using the “pen” tool and the “stroke path” command and enhancement of contrast of the middle image using the “adjust levels” command; lower panel, enhancement of diameter “1”/diameter “2” using the “line” tool. The original versions of the stored pairs of images are also provided in Additional file 1: Figure S1

HFO initiation—SpO2/TEE-guided setting of HFO mPaw—part 2 of optimization phase (Fig. 1)

This 60–80-min period was aimed at titrating HFO mPaw so as to achieve adequate oxygenation without causing any significant deterioration of RV function relative to pre-HFO CV. Patients were switched to the Sensormedics 3100B HFO ventilator. Care was taken to avoid patient disconnection times of > 3 s. HFO frequency was set at 4 Hz, and FiO2 and mPaw were initially set at 1.0 and at 10 cmH2O above the mPaw of the preceding CV, respectively. Five minutes thereafter, a 40-s-lasting recruitment maneuver (RM—continuous positive airways pressure of 45 cmH2O for 40 s with the oscillator piston off [14, 15]) was performed; RMs were to be canceled if the first study TEE-SM (see above) yielded an RVEDA/LVEDA ratio of ≥ 0.70; in addition, RM protocol safety features are detailed in the Additional file 1. Subsequently, HFO was resumed, and a cuff leak of 3–5 cmH2O was placed as previously described [14, 15, 20], and over the subsequent 10 min, HFO-FiO2 was adjusted to preceding CV-FiO2. Target SpO2 was ≥ 95%. Whenever SpO2 was < 95%, the initial HFO mPaw was decreased by 3 cmH2O, and if after 10 min, SpO2 was still < 95%, HFO mPaw was increased by 6 cmH2O (i.e., to 13 cmH2O above the mPaw of the preceding CV). A TEE-SM was then performed to confirm “RV tolerance of HFO (relative to CV)”; this was defined as RVEDA/LVEDA < 0.9 and not > 0.1 above the RVEDA/LVEDA determined during the latest TEE-SM of pre-HFO CV. If the “RV tolerance criterion” was not met, HFO mPaw was to be reduced by 2–3 cmH2O and RVEDA/LVEDA was to be re-determined after 15–20 min. Failure to achieve “RV tolerance of HFO” after two consecutive adjustments in HFO mPaw was to result in protocol termination and patient switching to CV. Maximum period duration was 80 min.

Lowest acceptable SpO2 during optimization phase

The lowest acceptable SpO2 for protocol continuation after any protocol-mandated adjustment in CV or HFO ventilator settings was 90%. During CV, any SpO2 drop to < 90% was to be treated with FiO2 increase by ≥ 0.1, whenever RVEDA/LVDEA exceeded 0.6; otherwise, PEEP was increased by 2–3 cmH2O.

HFO strategy testing phase (Fig. 1)

Patients were studied during 60-min testing periods of 4-Hz HFO with cuff leak, or 4-Hz HFO-TGI with cuff leak, or 7-Hz HFO without cuff leak. Employed, stable HFO ventilator settings are presented/reported in Fig. 1 and Table 1. Table 1 also displays estimates of HFO-Vt based on previously published data [1, 15]; see the Additional file 1 for additional details. The HFO mPaw setting associated with SpO2 ≥ 95% and “RV tolerance of HFO” was termed as “study HFO mPaw,” and was used during 4-Hz and 7-Hz HFO. During 4-Hz HFO-TGI, mPaw was set at 2–3 cmH2O below “study HFO mPaw” to counterbalance a previously determined, TGI-associated increase of similar magnitude in tracheal pressure [14, 15].
Table 1

Tested strategies of high-frequency oscillation (HFO)

HFO strategy

4-Hz HFO

4-Hz HFO-TGI

7-Hz HFO

mPaw (cmH2O)a

+ 10 cmH2Ob

+ 7–8 cmH2Ob

+ 10 cmH2Ob

FiO2

FiO2 of preceding CVc

FiO2 of preceding CVc

FiO2 of preceding CVc

ΔP (cmH2O)d

80–90

80–90

80–90

Bias flow (L/min)

60

60

60

I/E ratio

1/2

1/2

1/2

Cuff leak (cmH2O)

3–5

3–5

NA

TGI (L/min)e

NA

50% of MV of preceding CV

NA

Estimated Vt (mL)f

181.2 ± 6.5

190.0 ± 6.5

118.5 ± 4.1

RMg

CPAP of 45 cmH2O for 40 s

mPaw mean airway pressure, TGI tracheal gas insufflation, FiO2 inspired oxygen fraction, CV conventional ventilation, ΔP oscillatory pressure amplitude, I/E ratio inspiratory-to-expiratory time ratio, TGI tracheal gas insufflation, MV minute ventilation, Vt tidal volume, RM recruitment maneuver, CPAP continuous positive airway pressure, NA not applicable

1 cmH2O = 0.098 kPa

aValues correspond to the initial setting of the HFO mPaw and are referred to the mPaw of the pre-HFO CV (see also text and Fig. 1)

bDuring HFO-TGI, the mPaw was set at 2–3 cmH2O lower than the mPaw of standard HFO to counterbalance the estimated, TGI-induced increase in tracheal pressure [15]; the maximum allowable upper limit of HFO mPaw was 40 cmH2O

cProvided that peripheral oxygen saturation could be maintained above 90%

dCorresponds to actual ventilator-displayed values after the setting of the “Power” within 80–90% of its maximal value

eTGI FiO2 was equal to the FiO2 of the preceding CV; see also Supplement to Methods in Additional file 1

fValues are mean ± SD; estimates were based on previously published data on Vt delivery during HFO [1], and a previously published Vt estimate of ~ 200 mL for a specific combination of HFO frequency (i.e., 3.5 Hz), ΔP (i.e., 90 cmH2O), bias flow (i.e., 40 L/min), tracheal tube internal diameter (i.e., 8.5 mm), mPaw level (i.e., 30 cmH2O), and respiratory compliance (i.e., ~ 31 cmH2O) [15]; further details (including a calculated possible bias and other limitations of these estimates) are reported in Additional file 1

gEach HFO strategy was to be preceded by an RM, provided that RM abort criteria were not met; see also text, Fig. 1, and Additional file 1

HFO strategies were employed in random order (Fig. 1 and Additional file 1: Figure S2). “Low-frequency” and “high-frequency” strategy settings approximated those of prior [14] and recent [7, 8] trials, respectively; the feasibility of “high-frequency” (i.e., > 6 Hz) HFO has been previously documented [21]. Within 25–30 min after the start of 7-Hz HFO, the last TEE-SM was performed; an RVEDA/LVEDA of > 0.9 was to trigger completion of the protocol’s physiological measurements over the next 10 min and patient switching to the next ventilatory strategy (Fig. 1); over this 10-min period, oscillatory pressure amplitude was to be (temporarily) increased to 100 cmH2O to prevent further PaCO2 rise and associated RV stress.

Return to CV—concluding phase (Fig. 1)

Following completion of HFO strategy testing, patients were switched to CV; care was taken to avoid patient disconnection times of > 3 s. CV ventilator settings were identical to those of pre-HFO CV after the final PEEP adjustment. Physiological measurements were repeated within 50–60 min of return to CV, and the study protocol was concluded.

Study TEE measurements

All TEE imaging was performed by a single, experienced echocardiographer [22]. In contrast to TEE-SMs, which were used for the optimization of PEEP and HFO mPaw according to RVEDA/LVEDA, the study TEE measurements were performed “offline” as described below and further detailed in the Additional file 1. The corresponding, study TEE data were collected during the time intervals of the study’s physiological measurements (Fig. 1). The study TEE data were encoded and saved onto Vivid 7 hard disc. Following study completion, another experienced echocardiographer—not aware of the sequence of the tested ventilatory strategies—used (1) the saved TEE midesophageal, four-chamber imaging data to determine the RVEDA, LVEDA, RVEDA/LVEDA, and RV end-systolic area (RVESA); RV fractional area change was then calculated as (RVEDA – RVESA)/RVEDA; tricuspid annular plane systolic excursion (TAPSE) [23] was also determined as a post hoc (unprespecified) outcome and (2) the saved TEE transgastric imaging data to determine the end-diastolic and end-systolic eccentricity index [9, 22].

TEE imaging was focused at determining major RV function variables also used by preceding echocardiographic studies to compare HFO with lung-protective CV [9, 22]. Consequently, we did not assess pulmonary artery pressure or flow by using continuous or pulsed Doppler [9], respectively, or employ Tissue Doppler Imaging to measure myocardial systolic/diastolic velocities.

Definitions

RV dysfunction: RVEDA/LVEDA > 0.6 to 0.9; RV failure: RVEDA/LVEDA > 0.9; Eccentricity index: quotient of 2 LV diameters plotted as shown in Fig. 2 (lower panel) [9, 22].

Main outcome measures

The main outcome measures are as follows: Primary: RVEDA/LVEDA ratio, and end-diastolic and end-systolic eccentricity index. Secondary: PaO2/FiO2, PaCO2, arterial pH, mean intraarterial pressure, cardiac index, and respiratory compliance (during CV).

Statistical analysis

Additional methodological information is provided in the Additional file 1. According to an a priori power analysis for a repeated measures analysis of variance (ANOVA) design with one, within-subjects, five-level factor (i.e., ventilatory strategy [20]) and a large effect size index of 0.40 [24], 14 patients would be required, for alpha = 0.05 and power = 0.80. To compensate for possible incomplete observations, we pre-specified a sample size of 17 patients. In case of missing of any of the consecutive ventilatory strategy data points, we specified that we would conduct a linear mixed-model analysis instead of ANOVA. In such a case, the analysis would include “ventilatory strategy” as fixed factor and “patient” as random factor. The mixed-model methodology enables efficient use of data from patients with missing values, thus resulting in more precise estimates of the treatment effect [25].

Analyses were performed with IBM SPSS Statistics versions 22 and 25. Distribution normality was assessed by Kolmogorov Smirnov test. As further detailed below, there were three patients with missing data points (see also Fig. 3). Consequently, TEE and physiological data collected over the five pre-specified, 10-min intervals (Fig. 1) were analyzed with linear mixed-model analysis; p values were adjusted by applying Bonferroni’s correction. Significance was set at two-sided p < 0.05.
Fig. 3
Fig. 3

Individual patient data on two primary study outcomes and major determinants of right ventricular function. a Primary outcome no. 1, the right-to-left ventricular end-diastolic area ratio (RVEDA/LVEDA). b Primary outcome no. 2, the end-diastolic eccentricity index. c Determinant of right ventricular function no. 1, the arterial carbon dioxide tension (PaCO2). d Determinant of right ventricular function no. 2, the mean airway pressure. CV1 first period of conventional ventilation, HFO high-frequency oscillation, TGI tracheal gas insufflation, CV2 second period of conventional ventilation (see also “Methods” and Fig. 1). Numbers (from 1 to 17) just above the colored lines that connect the data points (triangles) indicate patient no.; the color of each “data-point-connecting line” is unique for each one of the patients. Horizontal black bars correspond to mean values. For each ventilatory strategy, summary data are also reported as mean ± SD. “Effect of Strategy” corresponds to the level of significance of the effect of the fixed, within-subjects factor (i.e., ventilatory strategy) in linear mixed-model analysis (see also the “Statistical Analysis” subsection); additional mixed-model data: a Percent variation explained 87, calculated as 100 × R2 value of bivariate linear regression between observed and mixed model-predicted values; b percent variation explained, 72; c percent variation explained, 74. *p < 0.05 versus CV1. p < 0.05 versus 4-Hz HFO. p < 0.05 versus 4-Hz HFO-TGI. §p < 0.05 versus 7-Hz HFO. Actual p values of pairwise comparisons are reported in Additional file 2

Linear regression

Multiple, stepwise linear regression was used to explore possible associations among ventilatory strategy-associated, relative (i.e., percent) changes in TEE outcome variables (dependent variables) and central venous pressure, RV fractional area change, and PaCO2 (independent variables). The first two independent variables were selected because they reflect RV filling pressure and contractility, and PaCO2 was selected because it is considered as a major determinant of RV afterload. In addition, we used bivariate linear regression to explore possible associations between the (1) change in PaCO2 from baseline CV to 7-Hz HFO (dependent variable) and total respiratory system resistance (Rtot,rs) and (2) the aforementioned PaCO2 change and the baseline CV’s change in end-expiratory lung volume due to intrinsic PEEP. Further details are provided in Additional file 1.

Results

Additional file 1: Figure S2 displays the study flow chart. From February 11, 2014, to October 27, 2016, 17 out of 45 screened ARDS patients (37.8%) were enrolled. Table 2 displays the summary baseline data recorded at 60 min before study initiation; patient-level data on baseline respiratory pathology and mechanics are reported in Additional file 1: Table S3.
Table 2

Baseline patient data

Age (years)

60.6 ± 15.2

Sex (male/female), n

13/4

Body mass index (kg/m2)

24.5 ± 1.9

Predicted body weight (kg)

69.8 ± 7.2

Simplified Acute Physiology Score IIa

42.9 ± 11.2

Murray scorea

3.4 ± 0.3

Tracheal tube ID (for male/female patient) (mm)a

8.5/8.0

Ventilator mode

Volume assist-control

Inspiratory-to-expiratory time ratioa

1/2

FiO2 (%)a

61.2 ± 9.4

PEEPe (cmH2O)a

14.7 ± 1.9

Tidal volume (L)/(mL/kg predicted body weight)a

0.44 ± 0.46/6.3 ± 0.4

Square-wave inspiratory flow (L/s)a

0.67 ± 0.07

Peak airway pressure (cmH2O)a

43.0 ± 6.2

Plateau airway pressure (cmH2O)a

30.4 ± 4.4

Mean airway pressure (cmH2O)a

21.6 ± 2.7

PEEPi (cmH2O)a

1.0 ± 0.6

Driving pressure (cmH2O)b

14.7 ± 4.0

C,rs (mL/cmH2O)b

32.4 ± 10.1

Rtot,rs (cmH2O/L.s)b

18.5 ± 4.8

ΔEELV (mL)b

31.0 ± 19.8

SpO2 (%)

91.2 ± 1.9

PaO2/FiO2

108.4 ± 15.0

PaCO2 (kPa)

6.5 ± 1.5

Arterial pH

7.35 ± 0.10

Oxygenation index

20.5 ± 5.0

Time from ARDS diagnosis to study enrollment (h)

42.0 ± 11.2

ARDS etiology

 Hospital-acquired pneumonia, n (%)

11 (64.7)

 Community-acquired pneumonia, n (%)

2 (11.8)

 Intra-abdominal sepsis, n (%)

2 (11.8)

 Other, n (%)c

2 (11.8)

Values are mean ± SD unless otherwise specified. For males, predicted body weight was calculated as 50 + [height (cm) − 152.4] × 0.91; for females as 45.5 + [height (cm) − 152.4] × 0.91

ID internal diameter, FiO2 inspired oxygen fraction, PEEPe external positive end-expiratory pressure, PEEPi intrinsic positive end-expiratory pressure, C,rs respiratory system compliance, Rtot,rs respiratory system resistance ΔEELV chang e in end-expiratory lung volume due to PEEPi, PaO2 arterial oxygen tension, SpO2 peripheral oxygen saturation, PaCO2 arterial carbon dioxide tension, ARDS acute respiratory distress syndrome, MOF multiple organ failure

aVariables determined/recorded within 1 h before study enrolment

bVariables calculated according to standard formulas presented in Additional file 1

cIncludes one case of bilateral pulmonary contusions and one case of massive blood transfusion

Recruitment maneuvers were canceled or aborted in five patients (see also Additional file 1: Methods). Seven-hertz HFO was discontinued at 40 min in two patients (see Fig. 1 and Additional file 1). However, the criteria for early protocol termination (Fig. 1) were not met in any case. Additional details regarding the setting of study HFO mPaw, patient safety, the stable hemodynamic support (including vasopressor infusion rates) throughout the study period, and in-hospital outcome are provided in Additional file 1.

Missing data

Patient no. 6 did not receive the 60-min sessions of 4-Hz HFO and 4-Hz HFO-TGI because of HFO ventilator malfunction and return to CV just after the completion of 60 min of 7-Hz HFO. In patient no. 8, the concluding TEE measurements of CV (Fig. 1) were not performed because the echocardiographer was asked to emergently assist in the resuscitation of a young trauma patient in cardiac arrest. Lastly, in patient no. 16, the protocol’s transgastric TEE views were not saved on the Vivid 7 machine’s hard disc due to operator error, and the eccentricity index could not be determined. Consequently, for each one of the five time intervals of physiologic measurements (Fig. 1), the study data were available from at least 15 patients.

Effect of ventilatory strategy on RV function

New-onset RV dysfunction (n = 5) or RV failure (n = 2) developed in a total of 7 out of 17 patients (41.2%) during 7-Hz HFO. In all cases, this “new RV dysfunction or failure” was effectively reversed (i.e., RVEDA/LVEDA dropped below 0.60 or 0.90, respectively) following discontinuation of 7-Hz HFO and transition to another ventilatory strategy, i.e., 4-Hz HFO (n = 2), or 4-Hz HFO-TGI (n = 4), or post-HFO CV (n = 1). Accordingly, and regarding the total study group, RVEDA/LVEDA was significantly higher during 7-Hz HFO compared to 4-Hz HFO and 4-Hz HFO-TGI; notably, RVEDA/LVEDA was lower during HFO-TGI relative to pre-HFO and post-HFO CV (Fig. 3a).

Similarly to RVEDA/LVEDA, end-diastolic (Fig. 3b) and end-systolic (Table 3) eccentricity indexes increased during 7-Hz HFO relative to 4-Hz HFO, 4-Hz HFO-TGI, and post-HFO CV, and these changes were reversed following discontinuation of 7-Hz HFO and transition to another ventilatory strategy. Notably, end-diastolic eccentricity index was lower during 4-Hz HFO-TGI, and end-systolic eccentricity index was lower during both 4-Hz HFO and 4-Hz HFO-TGI relative to pre-HFO CV (Fig. 3b and Table 3).
Table 3

Results of physiological measurements (see also Fig. 3)

Variable

CV1

4 Hz HFO

4 Hz HFO-TGI

7 Hz HFO

CV2

Strategy Effect–p value

R2/(%) of variation explained

ES-eccentricity index

1.38 ± 0.21

1.26 ± 0.10 a

1.17 ± 0.13 a

1.42 ± 0.17 b,c

1.27 ± 0.19 d

< 0.001

0.77/(77%)

RVEDA (cm2)

14.9 ± 5.7

13.0 ± 4.3

12.4 ± 3.8

14.8 ± 5.3c

13.6 ± 4.7

0.003

0.92/(92%)

LVEDA (cm2)

24.8 ± 7.7

23.4 ± 6.7

24.0 ± 6.6

23.1 ± 7.5

23.1 ± 6.6

0.22

0.91 (91%)

FAC of the RV

0.41 ± 0.08

0.41 ± 0.07

0.44 ± 0.07b

0.35 ± 0.09a,b,c

0.40 ± 0.09c

< 0.001

0.78/(78%)

TAPSE (cm)

1.97 ± 0.55

1.88 ± 0.47

2.04 ± 0.55b

1.66 ± 0.48a,b,c

1.96 ± 0.58d

< 0.001

0.90/(90%)

PaO2/FiO2

139.1 ± 20.5

249.6 ± 53.6a

246.4 ± 77.6a

248.1 ± 78.0a

155.0 ± 48.2b,c,d

< 0.001

0.53/(53%)

ScvO2 (%)

68.4 ± 4.7

74.4 ± 5.1a

74.3 ± 5.1a

74.2 ± 5.8a

70.6 ± 4.2b,c,d

< 0.001

0.74 (74%)

Arterial pH

7.39 ± 0.09

7.42 ± 0.14

7.43 ± 0.14

7.29 ± 0.12a,b,c

7.36 ± 0.09d

< 0.001

0.75/(75%)

Shunt fraction

0.34 ± 0.07

0.21 ± 0.07a

0.23 ± 0.08a

0.23 ± 0.10a

0.35 ± 0.10b,c,d

< 0.001

0.66/(66%)

Oxygenation Index

16.1 ± 5.4

13.1 ± 4.2a

12.7 ± 4.0a

14.4 ± 6.8

14.1 ± 4.0

0.03

0.66/(66%)

End-insp. Pplateau (cmH2O)e

29.9 ± 4.5



27.9 ± 4.5a



End-exp. Pplateau (cmH2O)e

16.4 ± 2.5



15.9 ± 2.3f



Driving pressure (cmH2O)e

13.5 ± 3.7



12.0 ± 4.1a



C,rs (mL/cmH2O)e

35.1 ± 11.5



41.6 ± 17.9a



MAP (kPa)

10.9 ± 0.9

12.3 ± 1.4a

12.0 ± 1.2a

11.5 ± 1.2

11.4 ± 0.7

0.01

0.62/(62%)

Heart rate (bpm)

89.1 ± 18.8

90.0 ± 18.7

90.0 ± 19.0

99.1 ± 23.7b,c

92.2 ± 21.0

0.002

0.88 (88%)

CVP (kPa)

1.7 ± 0.6

1.8 ± 0.5

1.8 ± 0.5

1.9 ± 0.5

1.7 ± 0.5

0.86g



Cardiac index (L/min/m2)

3.25 ± 0.38

3.35 ± 0.29

3.43 ± 0.36

3.11 ± 0.40>c

3.33 ± 0.34

0.009

0.61 (61%)

Stroke volume index (mL/m2)

38.3 ± 10.0

39.2 ± 10.8

40.4 ± 12.2

33.5 ± 10.1a,b,c

38.2 ± 10.3d

0.001

0.90 (90%)

DO2I (mL/min/m2)

363.6 ± 64.6

401.6 ± 525a

407.5 ± 49.6a

368.5 ± 74.7,c

373.1 ± 59.1b,c

< 0.001

0.83 (83%)

VO2I (mL/min/m2)

103.8 ± 28.5

109.3 ± 26.7

109.3 ± 28.0

98.9 ± 34.6

99.2 ± 30.6

0.11

0.70 (70%)

SVRI (dynes/cm5/s/m2)/

1744 ± 408

1911 ± 373

1820 ± 364

1905 ± 370

1783 ± 322

0.07

0.82 (82%)

Values are mean ± SD. CV1 first protocol period of conventional ventilation, HFO high-frequency oscillation, TGI tracheal gas insufflation, CV2 second protocol period of conventional ventilation (see also Fig. 1); “Strategy effect—p value” pertains to the level of significance of the fixed factor “ventilatory strategy” as determined by linear mixed model analysis (see also “Statistical Analysis” of the current text and Additional file 1); “R2/(%) variation explained” has been derived by bivariate linear regression between observed and mixed model-predicted values (see also legend of Fig. 3); ES end-systolic, RVEDA right-ventricular end-diastolic area, LVEDA left ventricular end-diastolic area, RV right ventricle, FAC of the RV RV fractional area change between end-diastole and end-systole [calculated as RVEDA-to-RV end-systolic area difference divided by RVEDA), TAPSE tricuspid annular plane systolic excursion, PaO2 arterial oxygen tension, FiO2 inspiratory oxygen fraction, ScvO2 central venous oxygen saturation, End-insp. end-inspiratory, End-exp. end-expiratory, Pplateau plateau pressure, C,rs quasistatic compliance of the respiratory system, MAP mean arterial pressure, bpm beats per min, CVP central venous pressure, DO2I oxygen delivery index, VO2I oxygen consumption index, SVRI systemic vascular resistance index. Primary outcome (i.e., ES-eccentricity index) data are highlighted in italics

ap < 0.05 versus CV1

bp < 0.05 versus 4 Hz HFO

cp < 0.05 versus 4 Hz HFO-TGI

dp < 0.05 versus 7 Hz HFO

eVariables compared between CV1 and CV2 by a paired t-test. Actual p values of pairwise comparisons are reported in Additional file 2

fIn one patient, CV1 external positive end-expiratory pressure (PEEP) was 18 cmH2O and was set at 15 cmH2O during CV2 by error of the attending investigator (see also Fig. 1)

gp value determined by one-way analysis of variance (factor = ventilatory strategy) because convergence was not achieved during the “MIXED procedure” and the validity of mixed-model fit was uncertain

Other TEE results were also suggestive of a reversible deterioration of RV function during 7-Hz HFO. More specifically, RVEDA was higher during 7-Hz HFO compared to 4-Hz HFO-TGI, whereas LVEDA was not significantly affected by ventilatory strategy. Fractional area change of the RV [calculated as (RVEDA – RV end-systolic area)/RVEDA] and TAPSE was lower during 7-Hz HFO compared to 4-Hz HFO and 4-Hz HFO-TGI and pre/post-HFO CV. Lastly, fractional area change of the RV was higher during 4-Hz HFO-TGI compared to 4-Hz HFO, 7-Hz HFO, and post-HFO CV, whereas TAPSE was higher during 4-Hz HFO-TGI compared to 4-Hz HFO (Table 3).

Gas exchange

Oxygenation and shunt fraction improved during HFO strategies compared to pre-HFO CV; these changes were either largely or fully reversed during post-HFO CV (Table 3). PaO2/FiO2 exceeded 150 [12, 13] in 14/17 (76.5%), and 16/16 (100.0%) and 15/16 (93.8%) patients during 7-Hz HFO, 4-Hz HFO and 4-Hz HFO-TGI, respectively. Oxygenation index was lower during 4-Hz HFO and 4-Hz HFO-TGI compared to pre-HFO CV (Table 3).

PaCO2 increased and arterial pH decreased during 7-Hz HFO compared to all other ventilatory strategies; the 7-Hz HFO-induced worsening in PaCO2 (Fig. 3c) and pH (Table 3) was effectively reversed after its discontinuation and transition to another strategy. While on 7-Hz HFO, 10/17 patients (58.8%) exhibited “high PaCO2s” of 6.4 to 12.4 kPa [12, 13], while being ventilated at “high-mPaws” of 30.0 to 38.5 cmH2O [9] (Fig. 3c, d); 5 of these patients were among those who developed “new RV dysfunction (n = 3) or failure (n = 2).”

Respiratory mechanics

Respiratory compliance, end-inspiratory plateau pressure, and driving pressure of post-HFO CV were improved compared to pre-HFO CV (Table 3).

Hemodynamics

The consecutive use of different ventilatory strategies was associated with relatively minor hemodynamic alterations. Mean arterial pressure was higher (by approximately 1.1–1.3 kPa on average) during 4-Hz HFO and 4-Hz HFO-TGI compared to pre-HFO CV. Cardiac index was relatively stable throughout the study period, but it was lower (by approximately 10% on average) during 7-Hz HFO relative to 4-Hz HFO-TGI. Mean heart rate was 10% higher during 7-Hz HFO compared to 4-Hz HFO and 4-Hz HFO-TGI. Stroke volume index was lower during 7-Hz HFO compared to all other ventilatory strategies. Central venous pressure and oxygen consumption index were not significantly affected by ventilatory strategy. Oxygen delivery index was lower during 7-Hz HFO and pre/post-HFO CV compared to 4-Hz HFO-TGI, and during pre/post-HFO CV compared to 4-Hz HFO. Systemic vascular resistance index did not exhibit any significant change during the study period (Table 3).

Linear regression

See Additional file 1 for details. Percent changes in PaCO2 among tested ventilatory strategies were predictive of concurrent percent changes in measures of RV function (R2 = 0.21–0.43; Additional file 1: Figure S3). Baseline CV Rtot,rs was predictive of the percent change in PaCO2 between baseline CV and 7-Hz HFO (R2 = 0.27, p = 0.03) (Additional file 1: Figure S4).

Discussion

In this physiological study of 17 moderate-to-severe ARDS patients, a short period of ≤ 60 min of 7 Hz HFO without cuff leak was associated with acute, reversible worsening of RV function compared to 4-Hz HFO with cuff leak and with/without TGI, and CV. Seven-Hz HFO was also associated with CO2 retention and acidosis, likely contributing to RV dysfunction. The tested 7-Hz HFO strategy was aimed at approximating the HFO ventilatory conditions of the recent, large, and neutral/negative HFO trials [7, 8]. These trials actually assessed the effect of HFO on lung protection without concurrently focusing on RV protection [9, 10]; according to our results, simultaneous RV exposure to high intrathoracic pressures and hypercapnia can promptly cause new RV dysfunction or failure.

The tested 4-Hz HFO strategies resembled to our previously employed strategy of intermittent HFO-TGI, interspersed with lung-protective CV [14]. This potentially beneficial HFO strategy improved oxygenation, likely through lung recruitment [5, 14, 15, 20, 26], without concurrent deterioration of PaCO2 relative to pre-HFO-TGI CV [14, 15, 20, 26, 27]. The HFO-TGI-induced increase in aerated lung volume was indicated by the lower plateau pressures and higher respiratory compliance of post-HFO-TGI CV versus pre-HFO-TGI CV [14, 28]. Furthermore, in contrast to the OSCILLATE trial [8], in our preceding HFO-TGI trial [14] and physiological studies [15, 18, 20, 26, 27] as well (total number of HFO-treated patients, 137), we could not determine any “low-frequency” HFO strategy-related, hemodynamic deterioration relative to CV. Accordingly, in the present study, 4-Hz HFO strategies resulted in similar hemodynamics and similar or even improved TEE measures of RV function compared to CV.

In the current study, oxygenation exhibited similar improvements of approximately 77–80% during all tested HFO strategies relative to pre-HFO CV, indicating lung recruitment [5, 14, 15, 20, 26]. Furthermore, post-HFO versus pre-HFO respiratory compliance was higher and end-inspiratory plateau and driving pressure were lower at the same administered Vt (Fig. 1 and Table 3), again suggesting an increase in aerated lung volume during post-HFO versus pre-HFO CV [14, 28].

In ARDS, main goals of ventilation include adequate gas exchange, lung protection, and RV protection [12, 17]. Factors increasing the risk of RV failure include pneumonia as ARDS cause PaO2/FiO2 < 150, driving pressure ≥ 18 cmH2O, and PaCO2 ≥ 6.4 kPa [12, 13]. In the present study, 2, 3, and 4 risk factors were present at baseline in 7, 6, and 3 patients, respectively. The moderate-to-severe oxygenation disturbance was effectively reversed and mean shunt fraction decreased by ≥ 0.12 during HFO strategies (Table 3), suggesting reversal of regional lung derecruitment [26] and attenuation of hypoxic pulmonary vasoconstriction [29]—both mechanisms of RV unloading [12]. Such mechanisms were likely partly counterbalanced by a high-mPaw-associated pulmonary microvascular closure [12] during all HFO strategies. Notably, this high-mPaw afterloading effect on the RV may be attenuated by the recruitment of dependent lung regions [9, 12, 26], and such a potential mechanism could have contributed to the observed, favorable RV function results of 4-Hz HFO and 4-Hz HFO-TGI versus CV (Fig. 3 and Table 3). During 7-Hz HFO, RV unloading mechanisms were likely overwhelmed by the acute, hypercapnic acidosis-induced, pulmonary vasoconstriction [12, 3032]. This interpretation is supported by the linear associations between changes in PaCO2 and changes in RVEDA/LVEDA, and the eccentricity indexes (Additional file 1: Results and Figure S3); the absolute values of the eccentricity indexes indicated RV pressure overload during 7-Hz HFO (Fig. 3 and Table 3) [9, 33].

Clinical evidence-based RV function concerns regarding HFO pertain to the prolonged (i.e., ≥ 24 h) and combined use of a “high mPaw” (i.e., ≥ 30 cmH2O) and a “high frequency” (e.g., 6–7 Hz) resulting in severe hypercapnia (i.e., PaCO2 ≥ 6.7 kPa) [8, 3436]. These factors predispose to acute cor pulmonale [9, 12, 13]. Current “short-term” results are consistent with the hypothesis that RV protection might be achievable during 4-Hz HFO or HFO-TGI with cuff leak contributing to PaCO2 control [36].

Limitations

Study sample size was relatively small and included ARDS patients with probably higher lung recruitability [37], thereby casting doubt upon results’ generalizability as regards “short-term” “low-frequency” HFO/HFO-TGI. However, higher recruitability is more frequent among patients with poorer oxygenation [37]. Therefore, further study of “low-frequency” HFO/HFO-TGI seems meaningful, especially in patients with PaO2/FiO2 < 100 hypoxemia [38].

We did not directly measure tracheal pressure to titrate the mPaw of tested HFO strategies to an “identical” mean tracheal pressure level [15, 20]. Notably, prior measurements of tracheal pressure during “low-frequency” HFO/HFO-TGI indicated mean pressure drops of 5–7 cmH2O along endotracheal tubes with cuff leak and internal diameters of 7.5–9.0 mm [14, 15]. This indicates only partial transmission of set HFO mPaws to the lung parenchyma. Pressure drops along 7.5–9.0-mm endotracheal tubes have not been reported to-date for 7-Hz HFO without a cuff leak. Consequently, our RV function results could be partly due to unmeasured differences in tracheal and alveolar pressures between “low-frequency” and “high-frequency” HFO strategies. Moreover, we did not test a 7-Hz HFO strategy with cuff leak. However, our objective was to “approximately reproduce” HFO ventilatory conditions of unfavorable [7, 8] and favorable [14] HFO studies and compare their “short-term” effect on the RV. Τhis “simulation” was feasible only according to standard HFO settings (i.e., mPaw, frequency, and cuff leak) reported by all the aforementioned studies.

In addition, we did not systematically record PICCO plus-derived extravascular lung water and pulmonary vascular permeability; however, it was unlikely to detect significant changes in such variables in a short-lasting physiological study; indeed, longer lasting prior studies have reported either slightly favorable or neutral results for HFO strategies versus CV [18, 22].

Lastly, we did not use transthoracic Doppler echocardiography to assess systolic pulmonary artery pressure (SPAP) by measuring tricuspid regurgitation peak velocity (TVR) [39]. However, TVR measurements would have increased protocol complexity since they require obtainment of the best alignment between regurgitant flow and Doppler signal [39]; indeed, the repeatability of this condition might have proven challenging during different ventilatory techniques and a potentially changing extent of lung recruitment and inflation that might even modify the position of the heart. Furthermore, RV dysfunction was absent (i.e., RVEDA/LVEDA was < 0.6) on several measurements’ time-points (Fig. 3), and this might have been associated with “trivial” regurgitant jets [39] and possible underestimation of SPAP. Consequently, the comparability of TVR-estimated SPAP among the tested ventilatory strategies might have been uncertain.

Clinical and research implications

Our “short-term” results imply that in moderate-to-severe ARDS with favorable oxygenation response to HFO, “low-frequency” HFO strategies with cuff leak may augment lung recruitment without worsening RV function. Future research should evaluate the long-term use of such HFO strategies (with mPaw “optimization” as described in “Methods”), in severe ARDS [19, 38]. TGI limitations have been detailed elsewhere [15]. In our current routine practice, we consider the intermittent [14, 27] use of “low-frequency” HFO-TGI with cuff leak {if tracheal tube internal diameter (ID) ≥ 8.0 mm [15]} or “low-frequency” HFO with cuff leak (if tracheal tube ID = 7.0–7.5 mm [15]) in ARDS patients fulfilling the following criteria: PaO2/FiO2 < 150 [14, 19, 37, 38], while on low-Vt CV with FiO2 ≥ 60%, PEEP ≥ 14 cmH2O [37], and driving pressure ≥ 15 cmH2O [40]. Sixteen out of 17 (94%) of the current study’s participants fulfilled ≥ 2 of the aforementioned criteria.

Conclusions

In moderate-to-severe ARDS exhibiting favorable oxygenation response to HFO with mPaw “optimized” according to pre-specified SpO2 and TEE-derived RVEDA/LVEDA criteria, short-term 4-Hz HFO or 4-Hz HFO-TGI with cuff leak resulted in better RV function compared to 7-Hz HFO without cuff leak, and similar or even improved RV function relative to lung protective CV. These results could be partly explained by an effective PaCO2 control during 4-Hz HFO and 4-Hz HFO-TGI.

Abbreviations

ANOVA:

Analysis of variance

ARDS:

Acute respiratory distress syndrome

CV:

Conventional ventilation

FiO2

Inspiratory O2 fraction

HFO:

High-frequency oscillation

LVEDA:

Left ventricular end-diastolic area

mPaw:

Mean airway pressure

PEEP:

Positive end-expiratory pressure

PiCCO:

Pulse-induced contour cardiac output

RCT:

Randomized clinical trial

Rtot,rs:

Total respiratory system resistance

RV:

Right ventricular

RVEDA:

RV end-diastolic area

SM:

Safety measurement

SPAP:

Systolic pulmonary artery pressure

SpO2

Peripheral oxygen saturation

TAPSE:

Tricuspid annular plane systolic excursion

TEE:

Transesophageal echocardiography

TGI:

Tracheal gas insufflation

TRV:

Tricuspid regurgitation peak velocity

Vt:

Tidal volume

Declarations

Acknowledgements

The authors wish to thank Director Cardiologist—Intensivist Panagiotis Politis—for his valuable contribution to the analysis of stored echocardiographic imaging data.

Funding

This study was funded by the Special Account for Research Funds, University of Athens Medical School, Athens, Greece. The funding source had no role in the study design; in the collection, analysis, and interpretation of data; in the writing of the report; and in the decision to submit the report for publication.

Availability of data and materials

“De-identified” datasets used and/or analyzed during the current study are available (in the form of Microsoft Excel Worksheets) from the corresponding author on reasonable request.

Important note

According to an applicable law, individual patient data must not lead to patient identification and can therefore be shared ONLY in de-identified form.

Authors’ contributions

SDM conceived and designed the study, oversaw the application of the study protocol, analyzed the data, and drafted the paper. HA applied the study protocol, collected the data, and revised the manuscript for important intellectual content. SM applied the study protocol, collected the data, and revised the manuscript for important intellectual content. SZ contributed to study conception and design, helped with the obtainment of funding, and revised the manuscript for important intellectual content. All authors had full access to all of the data in the study and take responsibility for the integrity of the data and the accuracy of the data analysis. The contributions of the second and third author were equally important. All authors read and approved the final manuscript.

Ethics approval and consent to participate

This study was approved by the Evaggelismos Hospital Scientific Committee (approval no. 271-30-10-2013; Chairman, Athanassios Skoutelis, MD, PHD, Professor of Internal Medicine), and written informed consent was obtained from the next-of-kin of all participating patients.

Consent for publication

Surrogates who provided informed consent for study participation also granted permission to the sharing of de-identified study data with persons authorized by the principal investigator and first author.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
First Department of Intensive Care Medicine, National and Kapodestrian University of Athens Medical School, Evaggelismos General Hospital, 45-47 Ipsilandou Street, GR-10675 Athens, Greece

References

  1. Hager DN, Fessler HE, Kaczka DW, Shanholtz CB, et al. Tidal volume delivery during high-frequency oscillatory ventilation in adults with acute respiratory distress syndrome. Crit Care Med. 2007;35(6):1522–9.View ArticlePubMedGoogle Scholar
  2. Fort P, Farmer C, Westerman J, et al. High-frequency oscillatory ventilation for adult respiratory distress syndrome—a pilot study. Crit Care Med. 1997;25(6):937–47.View ArticlePubMedGoogle Scholar
  3. Mehta S, Lapinsky SE, Hallett DC, et al. Prospective trial of high-frequency oscillation in adults with acute respiratory distress syndrome. Crit Care Med. 2001;29(7):1360–9.View ArticlePubMedGoogle Scholar
  4. Derdak S, Mehta S, Stewart TE, Multicenter Oscillatory Ventilation For Acute Respiratory Distress Syndrome Trial (MOAT) Study Investigators, et al. High-frequency oscillatory ventilation for acute respiratory distress syndrome in adults: a randomized, controlled trial. Am J Respir Crit Care Med. 2002;166(6):801–8.View ArticlePubMedGoogle Scholar
  5. Ferguson ND, Chiche JD, Kacmarek RM, et al. Combining high-frequency oscillatory ventilation and recruitment maneuvers in adults with early acute respiratory distress syndrome: the Treatment with Oscillation and an Open Lung Strategy (TOOLS) trial pilot study. Crit Care Med. 2005;33(3):479–86.View ArticlePubMedGoogle Scholar
  6. Sud S, Sud M, Friedrich JO, et al. High frequency oscillation in patients with acute lung injury and acute respiratory distress syndrome (ARDS): systematic review and meta-analysis. BMJ. 2010;c2327:340.Google Scholar
  7. Young D, Lamb SE, Shah S, For the OSCAR Study Group, et al. High-frequency oscillation for acute respiratory distress syndrome. N Engl J Med. 2013;368(9):806–13.View ArticlePubMedGoogle Scholar
  8. Ferguson ND, Cook DJ, Guyatt GH, OSCILLATE Trial Investigators, Canadian Critical Care Trials Group, et al. High-frequency oscillation in early acute respiratory distress syndrome. N Engl J Med. 2013;368(9):795–805.View ArticlePubMedGoogle Scholar
  9. Guervilly C, Forel JM, Hraiech S, et al. Right ventricular function during high-frequency oscillatory ventilation in adults with acute respiratory distress syndrome. Crit Care Med. 2012;40(5):1539–45.View ArticlePubMedGoogle Scholar
  10. Guervilly C, Roch A, Papazian L. High-frequency oscillation for ARDS. N Engl J Med. 2013;368(23):2233.PubMedGoogle Scholar
  11. Vieillard-Baron A, Price LC, Matthay MA. Acute cor pulmonale in ARDS. Intensive Care Med. 2013;39(10):1836–8.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Vieillard-Baron A, Matthay M, Teboul JL, et al. Experts’ opinion on management of hemodynamics in ARDS patients: focus on the effects of mechanical ventilation. Intensive Care Med. 2016;42(5):739–49.View ArticlePubMedGoogle Scholar
  13. Mekontso Dessap A, Boissier F, Charron C, et al. Acute cor pulmonale during protective ventilation for acute respiratory distress syndrome: prevalence, predictors, and clinical impact. Intensive Care Med. 2016;42(5):862–70.View ArticlePubMedGoogle Scholar
  14. Mentzelopoulos SD, Malachias S, Zintzaras E, et al. Intermittent recruitment with high-frequency oscillation/tracheal gas insufflation in acute respiratory distress syndrome. Eur Respir J. 2012;39(3):635–47.View ArticlePubMedGoogle Scholar
  15. Mentzelopoulos SD, Malachias S, Kokkoris S, Roussos C, Zakynthinos SG. Comparison of high-frequency oscillation and tracheal gas insufflation versus standard high-frequency oscillation at two levels of tracheal pressure. Intensive Care Med. 2010;36(5):810–6.View ArticlePubMedGoogle Scholar
  16. Ranieri VM, Suter PM, Tortorella C, et al. Effect of mechanical ventilation on inflammatory mediators in patients with acute respiratory distress syndrome: a randomized controlled trial. JAMA 1999;282(1):54–61.Google Scholar
  17. Network ARDS, Brower RG, Matthay MA, Morris A, Schoenfeld D, Thompson BT, Wheeler A. Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. N Engl J Med. 2000;342(18):1301–8.View ArticleGoogle Scholar
  18. Vrettou CS, Zakynthinos SG, Malachias S, Mentzelopoulos SD. The effect of high-frequency oscillatory ventilation combined with tracheal gas insufflation on extravascular lung water in patients with acute respiratory distress syndrome: a randomized, crossover, physiologic study. J Crit Care. 2014;29(4):568–73.View ArticlePubMedGoogle Scholar
  19. Definition Task Force ARDS, Ranieri VM, Rubenfeld GD, Thompson BT, et al. Acute respiratory distress syndrome: the Berlin definition. JAMA. 2012;307(23):2526–33.Google Scholar
  20. Mentzelopoulos SD, Roussos C, Koutsoukou A, et al. Acute effects of combined high-frequency oscillation and tracheal gas insufflation in severe acute respiratory distress syndrome. Crit Care Med. 2007;35(6):1500–8.View ArticlePubMedGoogle Scholar
  21. Fessler HE, Hager DN, Brower RG. Feasibility of very high-frequency ventilation in adults with acute respiratory distress syndrome. Crit Care Med 2008;36(4):1043–1048.Google Scholar
  22. Ursulet L, Roussiaux A, Belcour D, et al. Right over left ventricular end-diastolic area relevance to predict hemodynamic intolerance of high-frequency oscillatory ventilation in patients with severe ARDS. Ann Intensive Care 2015;5(1):25.Google Scholar
  23. Schmid E, Hilberath JN, Blumenstock G, et al. Tricuspid annular plane systolic excursion (TAPSE) predicts poor outcome in patients undergoing acute pulmonary embolectomy. Heart Lung Vessel. 2015;7(2):151–8.PubMedPubMed CentralGoogle Scholar
  24. Cohen J. The analysis of variance and covariance. In: Cohen J, ed. Statistical power analysis for the behavioral sciences. 2nd Ed. Lawrence Erlbaum Associates, Hillsdale, 1988; pp. 273–406.Google Scholar
  25. Brown H, Prescott R. Introduction. In: Brown H, Prescott R, editors. Applied mixed models in medicine. 2nd ed. Chichester: Wiley Ltd; 2006. p. 1–32.View ArticleGoogle Scholar
  26. Mentzelopoulos SD, Theodoridou M, Malachias S, et al. Scanographic comparison of high frequency oscillation with versus without tracheal gas insufflation in acute respiratory distress syndrome. Intensive Care Med. 2011;37(6):990–9.View ArticlePubMedGoogle Scholar
  27. Vrettou CS, Zakynthinos SG, Malachias S, Mentzelopoulos SD. High-frequency oscillation and tracheal gas insufflation in patients with severe acute respiratory distress syndrome and traumatic brain injury: an interventional physiological study. Crit Care. 2013;17(4):R136.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Henzler D, Pelosi P, Dembinski R, et al. Respiratory compliance but not gas exchange correlates with changes in lung aeration after a recruitment maneuver: an experimental study in pigs with saline lavage acute lung injury. Crit Care. 2005;9(5):R471–82.View ArticlePubMedPubMed CentralGoogle Scholar
  29. Naeije R, Brimioulle S. Physiology in medicine: importance of hypoxic pulmonary vasoconstriction in maintaining arterial oxygenation during acute respiratory failure. Crit Care. 2001;5(2):67–71.View ArticlePubMedPubMed CentralGoogle Scholar
  30. Brimioulle S, Lejeune P, Vachiery JL, Leeman M, Melot C, Naeije R. Effects of acidosis and alkalosis on hypoxic pulmonary vasoconstriction in dogs. Am J Phys 1990; 58(2 Pt 2):H347-H353.Google Scholar
  31. Puybasset L, Stewart T, Rouby JJ, et al. Inhaled nitric oxide reverses the increase in pulmonary vascular resistance induced by permissive hypercapnia in patients with acute respiratory distress syndrome. Anesthesiology. 1994;80(6):1254–67.View ArticlePubMedGoogle Scholar
  32. Mekontso Dessap A, Charron C, Devaquet J, et al. Impact of acute hypercapnia and augmented positive end-expiratory pressure on right ventricle function in severe acute respiratory distress syndrome. Intensive Care Med. 2009;35(11):1850–8.View ArticlePubMedPubMed CentralGoogle Scholar
  33. Ryan T, Petrovic O, Dillon JC, Feigenbaum H, Conley MJ, Armstrong WF. An echocardiographic index for separation of right ventricular volume and pressure overload. J Am Coll Cardiol. 1985;5(4):918–27.View ArticlePubMedGoogle Scholar
  34. Goffi A, Ferguson ND. High-frequency oscillatory ventilation for early acute respiratory distress syndrome in adults. Curr Opin Crit Care. 2014;20(1):77–85.View ArticlePubMedGoogle Scholar
  35. Nin N, Muriel A, Peñuelas O, VENTILA Group, et al. Severe hypercapnia and outcome of mechanically ventilated patients with moderate or severe acute respiratory distress syndrome. Intensive Care Med. 2017;43(2):200–8.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Derdak S. High-frequency oscillatory ventilation for acute respiratory distress syndrome in adult patients. Crit Care Med. 2003;31(4 Suppl):S317–23.View ArticlePubMedGoogle Scholar
  37. Gattinoni L, Caironi P, Cressoni M, et al. Lung recruitment in patients with the acute respiratory distress syndrome. N Engl J Med. 2006;354(17):1775–86.View ArticlePubMedGoogle Scholar
  38. Meade MO, Young D, Hanna S, et al. Severity of hypoxemia and effect of high frequency oscillatory ventilation in ARDS. Am J Respir Crit Care Med. 2017;196(6):727–33.View ArticlePubMedGoogle Scholar
  39. Bossone E, D’Andrea A, D'Alto M, et al. Echocardiography in pulmonary arterial hypertension: from diagnosis to prognosis. J Am Soc Echocardiogr. 2013;26(1):1–14.View ArticlePubMedGoogle Scholar
  40. Amato MB, Meade MO, Slutsky AS, et al. Driving pressure and survival in the acute respiratory distress syndrome. N Engl J Med. 2015;372(8):747–55.View ArticlePubMedGoogle Scholar

Copyright

Advertisement
